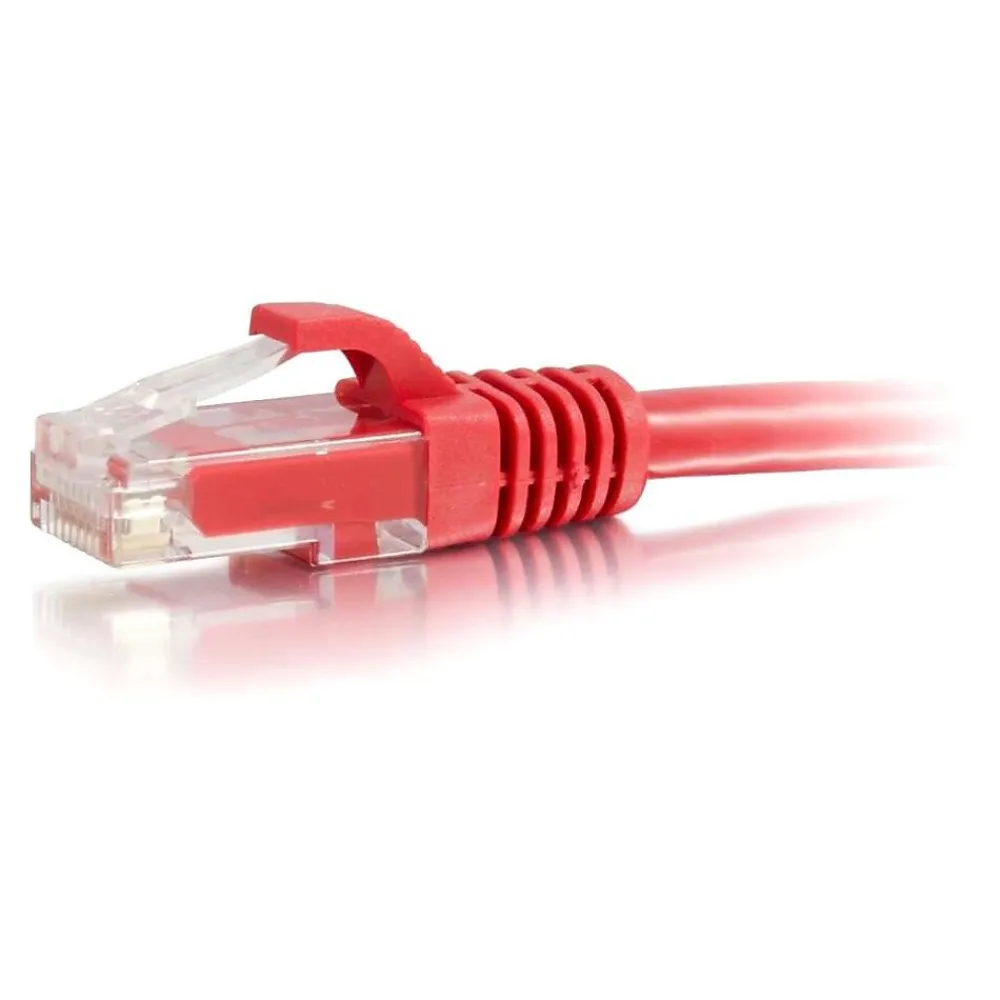

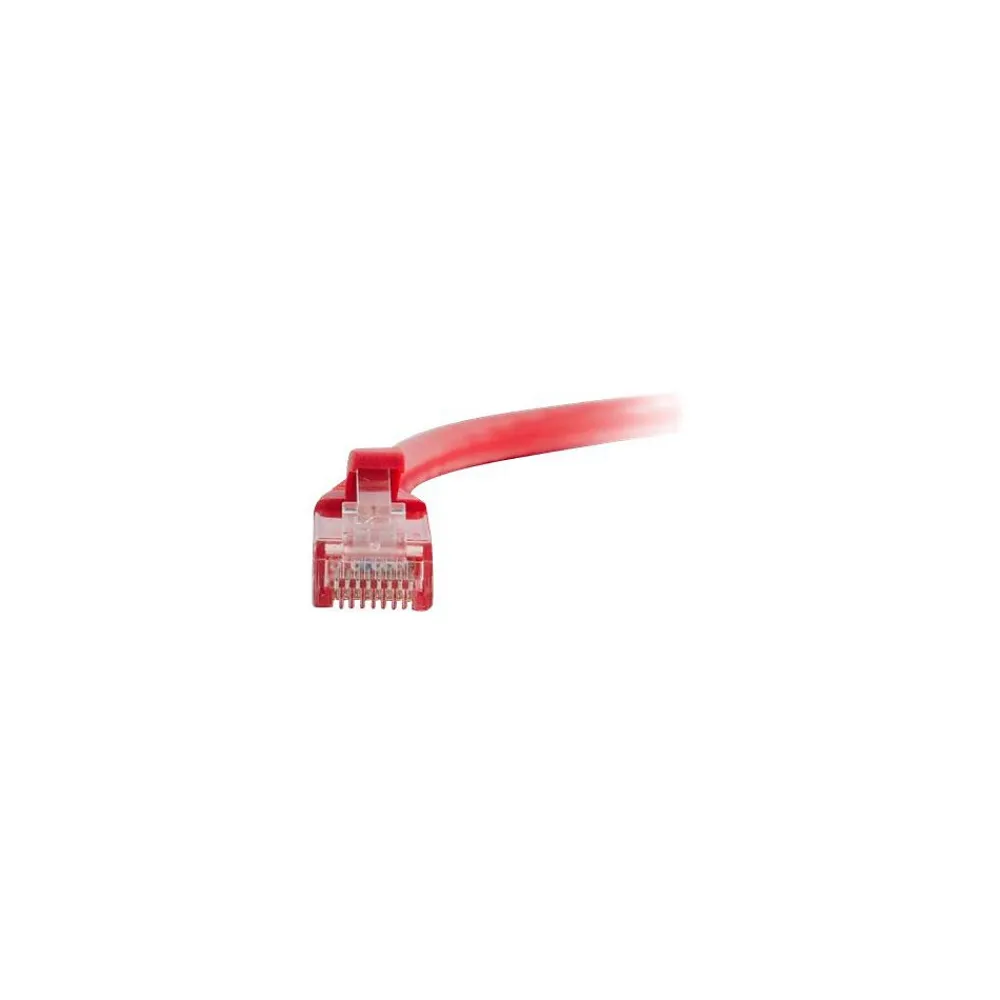

C2G Cables to Go C2G 10Ft Cat5E Snagless Unshielded (Utp) Network Patch Cable, Red
Original price was: $8.00.$5.89Current price is: $5.89.
The C2G 10′ red Cat5e snagless unshielded Ethernet network patch cable features RJ-45 male connectors on both ends for enhanced connectivity. This male/male cable with FR-PVC jacket truncates both impedance and structural return loss. The cable features 24 AWG stranded bare copper conductor, which minimizes near-end crosstalk levels. Patch cable maintains the twist spacing throughout the line up to the termination point. This cable is compatible with hubs, switches, routers, network adapters, modem DSL/cables, patch panels and other high-performance networking applications.
- Category 5e for Network Device
- RJ-45 Male
- 10ft
- Red
- FR-PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, EIA/TIA 568B.2 standards and certifications
- Contact material: 50 micron gold-plated copper alloy
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in red color
- Diameter: 5.3 mm OD jacket, 0.95 + 0.05 mm insulation, thickness: 0.55 mm jacket
- Voltage rating: 30 V, Dielectric strength: 500 MV/m
- Resistance: 89 ohm/km (maximum) DC conductor, 100 ohm/km (minimum) insulation
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for 1000base-T, 100base-T, 10base-T, 4/16 Mbps Token Ring, 100 VG-Any LAN, 100 Mbps TP-PMD, 55/155 Mbps ATM and voice
- Weight: 0.23 lbs.
- Comes with lifetime warranty
| Attribute name | Attribute value |
|---|---|
| Cable Length (Inches) | 0.1 |
| Data Transfer Rate (Mbps) | Audio/Video |
| End 2 Connector Type | PVC |
| Device Type The primary color of the product | Red |
| Conductor Material Numerical Value of AWG rating of cable up to 40. | 24 |
| Connector Finish Actual manufacturer name for the color of the product. | Red |
| Cable Length (ft) | RJ45 |
| Connector Gender Does the product contain an ethernet port or connector | Yes |
